• Technical Specifications

    Performance Testing, Roofing Profile and Technical Parameters

    Download Brochure

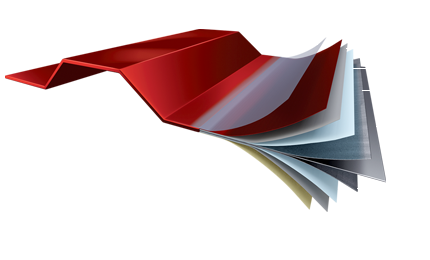

    8 Layers Protection

    JSW Everglow sheets comes with 8 layers of protection.
    4 Layers on top and 4 layers on bottom to ensure long life. Every layer is specially designed to give the best quality available in the country.

    Technical Specifications
    • A. Colled Rolled Steel Substrate
    • 1. Al Zinc alloy coat
    • 2. Pre-treatment (chromating)
    • 3. Primer
    • 4. Top Coat
    • 5. Backer Coat
    • 6. Guard Film (optional)

    11 High Performance Test

    Swipe right to view more
    Specification
    Scratch Hardness (T/B) 1.5 – 2/1 – 1.5 kg
    Impact test (in Joules) (Thickness based Soft material) As per Standard
    Salt Spray Test (Specific to Coating Type) 1000 Hrs Pass
    Adhesion Test (cross-hatch) 100%
    Erichsen Cupping Test As per Standard
    Humidity Test 750 – 1000 hrs
    T – Bend Test (T = substrate thickness) No Tape Loss
    Water Boiling Test As per Standard
    Solvent Rub Test (MEK – Double rub) 100DR
    Chemical Resistance As per standard
    Max. Operating Temp Upto 140 degree C

    JSW Everglow goes through 11 high pressure tests to ensure highest quality standards.
    The quality challenge: JSW Everglow is the best colour coated sheet available in Indian market.

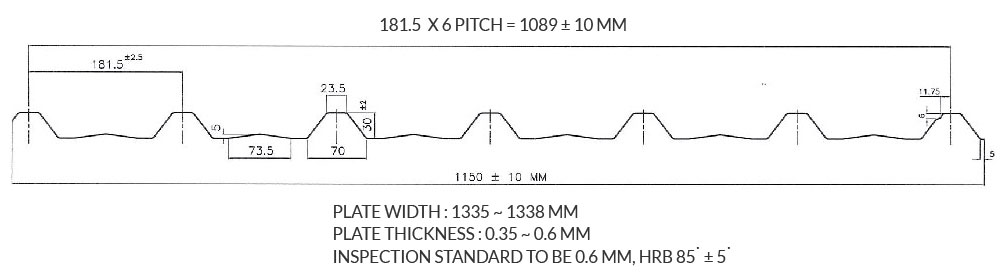

    Roofing Profile

    The profile has been specially designed by global experts to ensure high strength and
    a water-tight roofing solution to ensure leak-proof installations for years to come.

    Pitch(mm) 181 +/- 2.5
    Crest Height (mm) 30 +/- 2
    Substrate PPGL

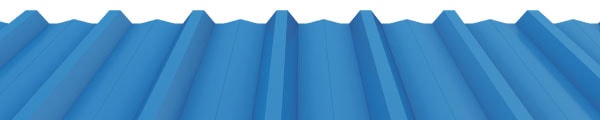

    Roofing Profile

    Roofing Profile

    Technical Parameters

    Detailed Technical Parameters approved

    Swipe right to view more
    Sr. No Parameter PPGL HARD - Profile Sheets
    1 Thickness (mm) 0.35, 0.40, 0.45, 0.50, 0.60
    2 Thickness Tolerance +0/-0.030 mm
    3 Profile Full Width 1150 mm
    4 Profile Covered Width 1090 mm
    5 Width Tolerance ±10 mm
    6 Length (Meter) 2.4384, 3.048, 3.6576, 4.2672, 4.8768, 5.4864, 6.096, 6.7056, 7.3152
    7 Substrate High Grade Aluminium Zinc coating
    8 Paint type -Top SDP
    9 Paint type -Bottom RMP
    10 Solvent resistance Top coat 100 DR Pass
    11 Scratch Resistance “2.0 kg min for Top Coat
    1.5 kg min for Back Coat”
    12 Gloss High Gloss
    13 Guard film JSW Everglow Branded Guard Film
    14 Salt spray test 1000 Hrs Pass
