JSW Radiance

Superior quality colour coated sheets and coils


JSW Radiance is a premium colour-coated steel engineered with advanced paint technology for superior durability, gloss and colour retention. Designed to resist fading and deliver long-term protection, it is available in six variants to meet varied industrial and construction requirements.

Key Features and Benefits

Advanced coatings. Lasting radiance.

Widest width
Widest width

1550 mm wide colour-coated steel for large-span applications

Maximum warranty
Maximum warranty

Colour-coated steel backed by up to a 25-year warranty

Unique paint technology
Unique paint technology

Advanced paint coatings resistant to cracking and peeling

Bright and luminous
Bright and luminous

Fade-resistant colour-coated steel with lasting radiance

Maximum thickness
Maximum thickness

1.5 mm thick colour-coated steel for structural applications

Customisation options
Customisation options

Colour-coated steel with customised shades and 35 µm coating

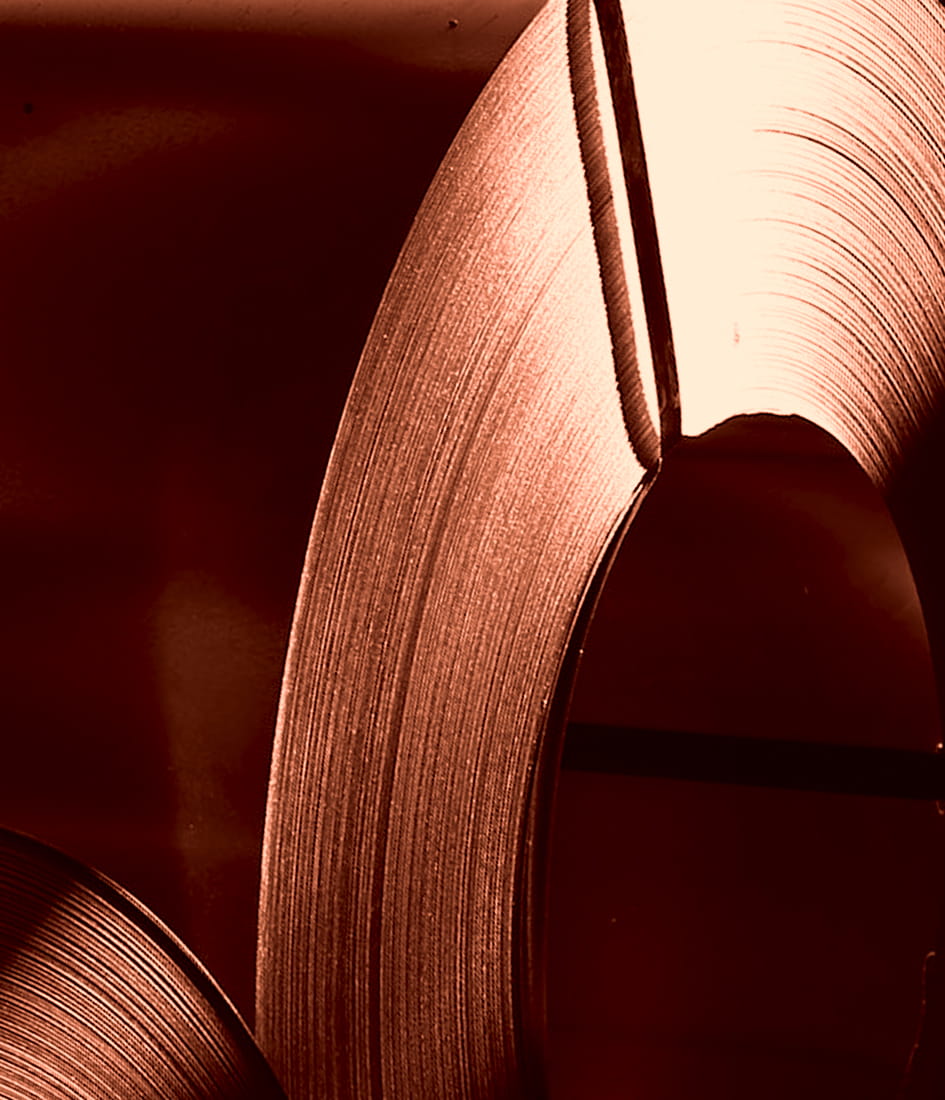

Technical specifications

Technical specifications

  • Technical standard: Base substrate IS 15961, Colour-coated as per IS 15965
  • Grade: 550 MPa or 345 MPa (As per customer requirements)
  • Thickness: 0.3 mm–1.5 mm (Total coated thickness)
  • Width: Up to 1550 mm
  • Al-Zn coating: 150-200 g/m² (Typical Al-Zn mass)
  • Colour: All RAL colours, or according to customer requirements
  • Paint system: RMP, SMP, SDP & PVDF
  • Top side (Paint): Primer paint + polyester paint coating (25 microns min)
  • Back side (Paint): Primer epoxy (10 microns min)
  • Coil weight: 3-8 tons per coil
  • Salt spray resistance: >=1000 hours with SDP /PVDF Paints
  • SRI value (Cool roof): > = 80 (Shade specific)
  • Anti-microbial: Antibacterial colour-coated steel meeting JIS Z 2801.
  • Cool roof: Solar-reflective steel for improved thermal comfort.
  • Anti-graffiti: Hydrophobic steel coating resistant to graffiti and stains.
  • Anti-dust: Low-maintenance coated steel with dirt-shedding surface.
  • Anti-static: Anti-static coated steel for sensitive environments.
  • High gloss: High-gloss colour-coated steel with advanced paint systems.

Packaging

Smart packaging, safe handling

MARK OF INGENUITY

Non-erasable liner marking

Non-erasable liner marking

All genuine Radiance sheets come with special non-erasable liner markings to ensure that you get original, high quality products.

Watermark logo

Watermark logo

All genuine Radiance sheets feature a watermark logo, providing a distinct mark of authenticity that differentiates it from other brands.

ISI approved

ISI approved

JSW Radiance sheets come with correct thickness and optimum weight.

Applications

Proven performance across diverse environments and industries

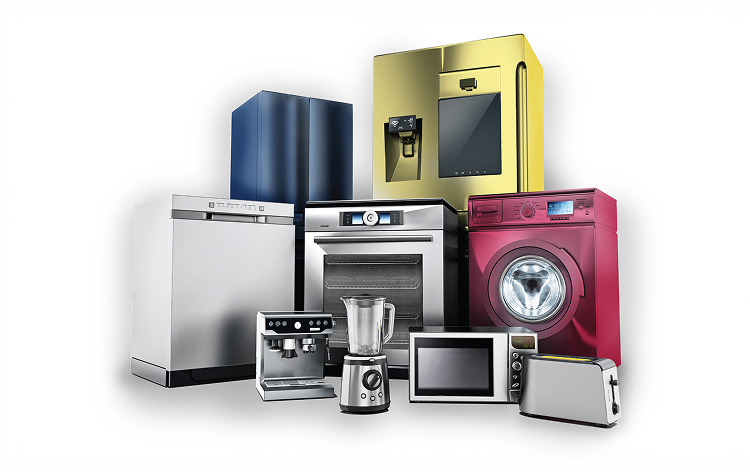

Appliance and White Goods

Appliance and White Goods Refrigerators, Washing Machines, Air Conditioners and Panels

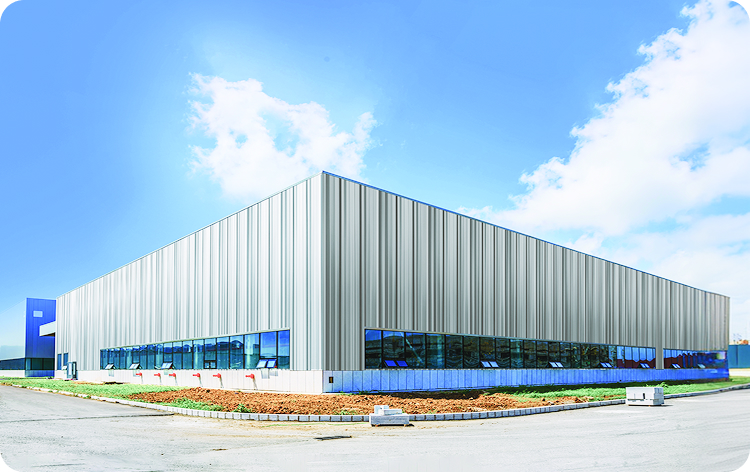

Warehousing and PEB Structures

Warehousing and PEB Structures Warehouses, Logistics Parks and Pre-engineered Buildings

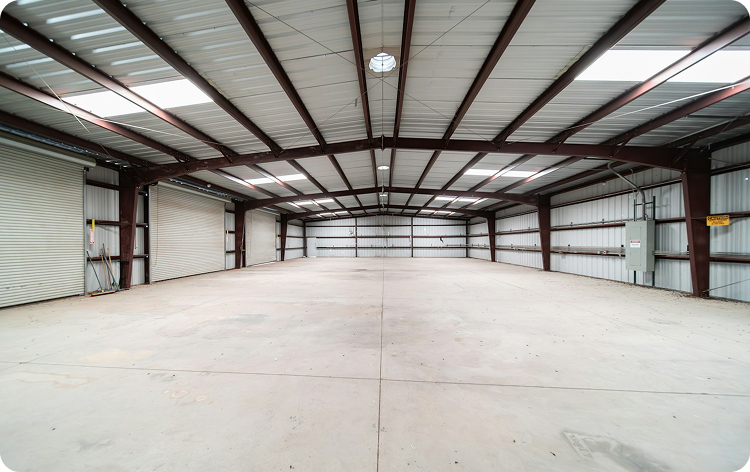

Cold Storage and Cool Rooms

Cold Storage and Cool Rooms Cold Rooms, Food Storage Facilities

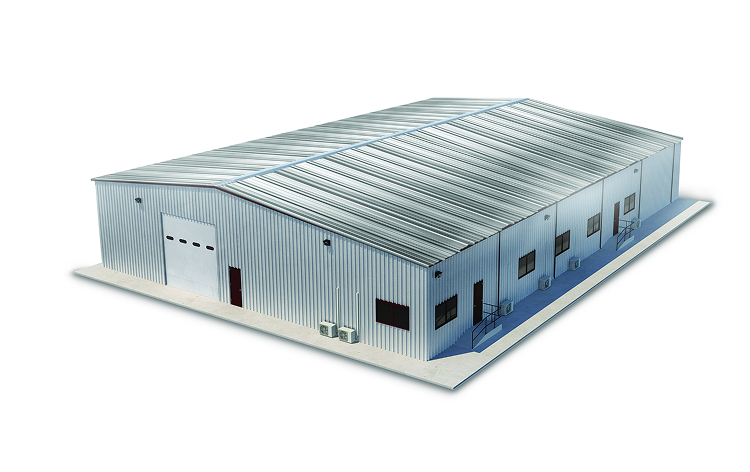

Industrial

Industrial Sheds, Factories, Commercial Roofing
