Technical
Galvalume®
Al-Zn coating mass: 165-200 GSM (total both sides)*
Available sizes & grades
| Thickness Tolerance | ||
|---|---|---|
| CR_Thk Min* mm | CR_Thk Max mm | Thk Tol (±) μm |
| 0.8 | 1.2 | 25 |
| Plant Capability | ||||
|---|---|---|---|---|
| Grade | CR_Thk min* mm | CR_Thk max mm | Width min mm | Width max mm |
| Commercial Soft | 0.8 | 1.2 | 50 | 1300 |
| Commercial Hard | 0.8 | 1.2 | 50 | 1300 |
| Structural | 0.8 | 1.2 | 50 | 1300 |
| Structural Grades | |
|---|---|
| Specification | Designation |
| ASTM A 792 | Grade 33 [230], Grade 37 [255], Grade 40 [275], Grade 50 [340] class 1, Grade 50 [340] class 2, Grade 50 [340] class 4, Grade 80 [550] class 1, Grade 80 [550] class 2 |
| JIS G 3321 | 40[275], 50[340], 60[410], 80[550] |
| EN 10326 | S220GD, S250GD, S280GD, S320GD, S350GD, S550GD |
| AS 1397 | G250,G300,G350,G550 |
Details specific to solar application only, lower thickness & coating can also be provided*
Galvanized
Zn coating mass: 550 GSM (total both sides)*
Available sizes & grades
| Thickness Tolerance | ||
|---|---|---|
| CR_Thk Min* mm | CR_Thk Max mm | Thk Tol (±) μm |
| 0.8 | 1.49 | 25 |
| 1.5 | 1.99 | 40 |
| 2 | 2.49 | 60 |
| 2.5 | 3 | 90 |
| Plant Capability | ||||
|---|---|---|---|---|
| Grade | CR_Thk min* mm | CR_Thk max mm | Width min mm | Width max mm |
| Commercial Soft | 0.8 2.5 |
2.5 3 |
50 100 |
1300 1250 |
| Commercial Hard | 0.8 1.2 |
1.2 2.5 |
50 100 |
1300 1250 |
| Drawing | 0.8 2.5 |
2.5 3 |
50 100 |
1300 1250 |
| Structural | 0.8 | 2.5 | 50 | 1300 |
| Structural Grades | |
|---|---|
| Specification | Designation |
| ASTM 653/A |
GradeSS 33[230], GradeSS 37[255],
GradeSS 40[275], Grade 50 [340] class 1, Grade 50 [340] class 2, Grade 50 [340] class 3, Grade 80[550] |
| ASTM 653/A HSLA TYPE A |
40[275], 50[340], 60[410] |
| ASTM 653/A HSLA TYPE B |
40[275], 50[340], 60[410], 80[550] |
| JIS G 3302 | SGC340, SGC400, SGC440, SGC570 |
| EN 10326 | S220GD, S250GD, S280GD, S320GD, S350GD, S550GD |
| AS 1397 | G250, G300, G350, G550 |
Details specific to solar application only, lower thickness & coating can also be provided*
Characteristics Common to Galvanized & Galvalume®
| Coil Characteristic | ||
|---|---|---|
| Coil Inner Dia | Coil Weight Max | |
| GI | GL | |
| 508 mm / 610 mm | 25T | 12T |
| Width Tolerance | |
|---|---|
| Edge Condition | Width Delta (mm) |
| Mill Edge | +5/-0 |
| Slit Edge | +1/-0 |
| Spangle | Surface Treatment | Oiling | Surface Roughness | Cold Treatment | Edge Condition |
| Regular / Minimized / Suppressed | Chromated Cr+6 / Chromated Cr+3 (as per ROHS norms) / Acrylic coating AFP (Cr+6) |
Oiled / Unoiled | 0.6 - 2.0 microns (for Skin Passed) |
Non Stretch Leveled / Stretch Leveled / Skin Passed | Slit / Mill edge |
Product Authenticity
Our products come with unique identification & liner markings. The material specifications are mentioned on the product labels. Please check the product for its genuineness.
The Galvalume® Steel Advantage
Economic Advantages of Galvalume® Over Galvanized
| Total Coated | Area Per Ton | % Area more in Galvalume® over Galvanised | |
|---|---|---|---|
| Sheet Thickness | Galvalume® Coated | G-90 Galvanized | |
| mm | Sq.meter | Sq.meter | % |
| 0.3 | 406 | 384 | 6 |
| 0.38 | 320 | 306 | 5 |
| 0.64 | 188 | 183 | 3 |
| 1 | 116 | 114 | 2 |
Galvalume® is a Value-for-Money product as there is significantly More Area Per Ton of coated steel, especially for lower gauges.
Superior Corrosion Resistance
Galvalume® provides Galvanic & Barrier Protection as opposed to predominantly galvanic protection by Galvanized steel, thus Galvalume® lasts 2-4 times longer than equivalent thickness Zinc coating (traditional Galvanized sheet) and outlasts Aluminium Coated Type 1 & 2 products, when exposed to same atmospheric conditions.

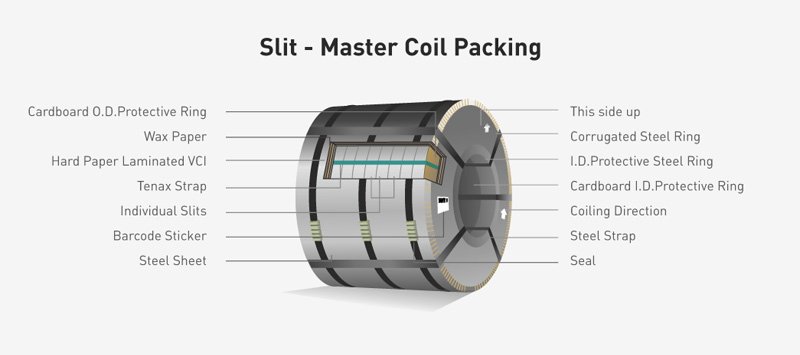

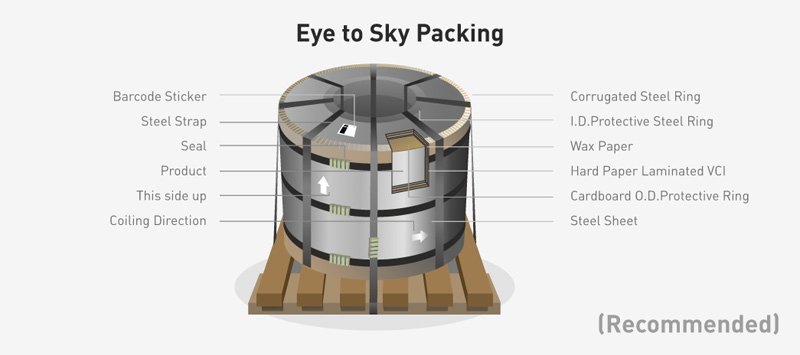

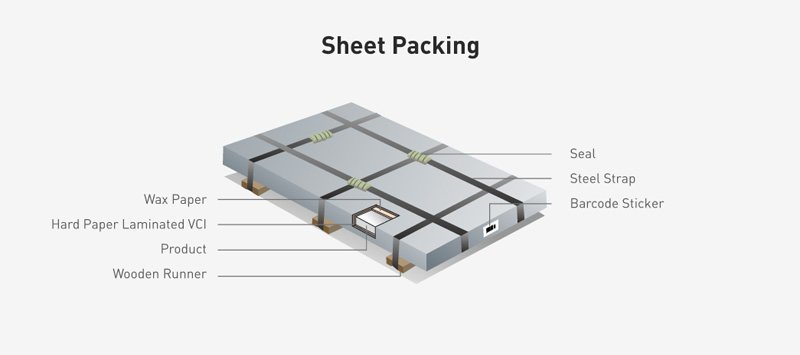

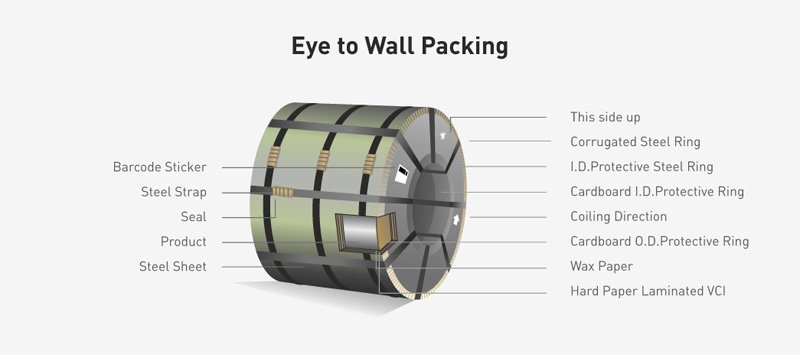

Packaging
JSW offers effective packaging as per your requirements and in compliance with international norms. Emphasis is placed to ensure durability, prevention of any damage during transportation and better storage.
